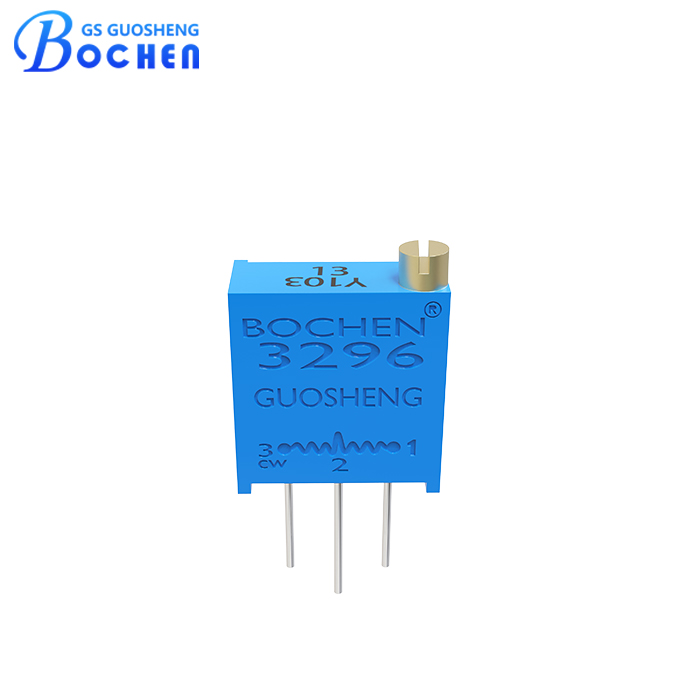

3296Y 10K 20K 50K 100K Ohms Precision Adjustable Multiturn Trimmer Potentiometer
Feature:
• Rated at 0.5W.
• Top Adjustment Shaft.
• Resistance range from 10Ω to 5MΩ.
• Total mechanical travel is 30 ± 2 Turns.
• Cermet element ,thin body, high precision.
• Precision adjustable and reliable performance.
Description:
The 3296Y trimmer potentiometer, a compact yet powerful component designed for precision control in electronic circuits. With a rated power of 0.5W, this potentiometer features a top adjustment shaft, enabling easy tuning and calibration. Its resistance range spans from 10Ω to 5MΩ, catering to a wide range of circuit requirements. Boasting an effective electrical travel of 25 (±2) turns, it ensures accurate adjustments with ease. Constructed with cermet element, this trimmer potentiometer offers high precision and reliability, making it ideal for demanding applications where performance is critical. Expect nothing short of exceptional performance and durability from the 3296Y trimmer potentiometer.
Specification:
| Electrical Characteristics | Nominal Resistance Range | 10Ω-5MΩ |
| Resistance Tolerance | ±10% | |
| Terminal Resistance | ≤±1% R or 3Ω | |
| Contact Resistance Variation (CRV) | ≤3%R or 3Ω | |
| Insulation Resistance | 500 Vdc. R1≥1GΩ | |
| Withstand Voltage | 101.3KPa,500 Vac；8.5KPa,250 Vac | |
| Dielectric Strength Sea Level | 500 Vac(1 Min.) | |
| Effective Travel | 25(±2)Turns | |
| Environment Characteristics | Weld Heat Resistance | Wave soldering: Temp: 260℃±5℃, T: 3±1 Secs. Soldering iron welding: Temp: 320℃±5℃, T: ≤2 Secs. |
| Rated Power(300 volts max.) | 70℃,0.5W；125℃,0W | |
| Temperature Range | -55°C ~ + 125°C | |
| Temperature Coefficient | ±250,±100 ppm /°C | |
| Temperature Variation | ΔR≤±2%R, Δ(Uab/Uac)≤±1% | |
| Collision | 10-500Hz,0.75mm,6h ΔR≤±1%R, Δ(Uab/Uac)≤±2% |
|
| Vibration | 100G, ΔR≤±1%R,Δ(Uab/Uac)≤±2% | |
| Electrical Endurance At 70°C | 1000 hours @ 70℃ Rated Power; ΔR≤±3%R | |
| Rotational Life | 200 Cycles,ΔR≤±3%R | |
| Physical Characteristics | Total Mechanical Travel | 30±2 Turns |
| Starting Torque | ≤25 mN.m | |
| Clutch Torque | ≤35 mN.m |
Dimension:
Packaging:
Packaging specification:50 pieces per tube.
Application:
The 3296Y cermet trimmer potentiometer finds applications in various fields that require precise resistance trimming. Here its application areas:
• Electronics: The 3296Y cermet trimmer potentiometer is commonly used in electronic circuits for fine-tuning resistance values. It is utilized in audio equipment, communication devices, power supplies, and other electronic systems that require accurate resistance adjustments.
• Industrial Controls: This potentiometer is employed in industrial control systems for calibration and adjustment purposes. It allows for precise resistance trimming in control panels, motor control circuits, and instrumentation equipment.
• Automotive Electronics: The 3296Y cermet trimmer potentiometer is utilized in automotive electronics for resistance adjustments in various components. It is often found in control modules, sensors, and audio systems, ensuring optimal performance and reliability.
• Telecommunications: In telecommunications equipment, this potentiometer is used for resistance trimming in signal processing circuits, network devices, and telecommunication systems. It helps maintain signal quality and ensure accurate data transmission.
• Consumer Electronics: The 3296Y cermet trimmer potentiometer is employed in a range of consumer electronic devices, including televisions, home appliances, and computer peripherals. It allows for precise resistance adjustments that contribute to improved performance and functionality.
• Medical Devices: This potentiometer is utilized in medical devices and equipment where precise resistance control is necessary. It helps in adjusting parameters, calibrating sensors, and ensuring accurate measurements in medical instruments.
In summary, the 3296Y cermet trimmer potentiometer finds applications in electronics, industrial controls, automotive electronics, telecommunications, consumer electronics, and medical devices. Its ability to provide precise resistance trimming makes it a versatile component in various industries.
