3299Y 0.5w 50k Ohms Cermet Trimmer 3299Y-1-503 Multiturn Trimming Potentiometer

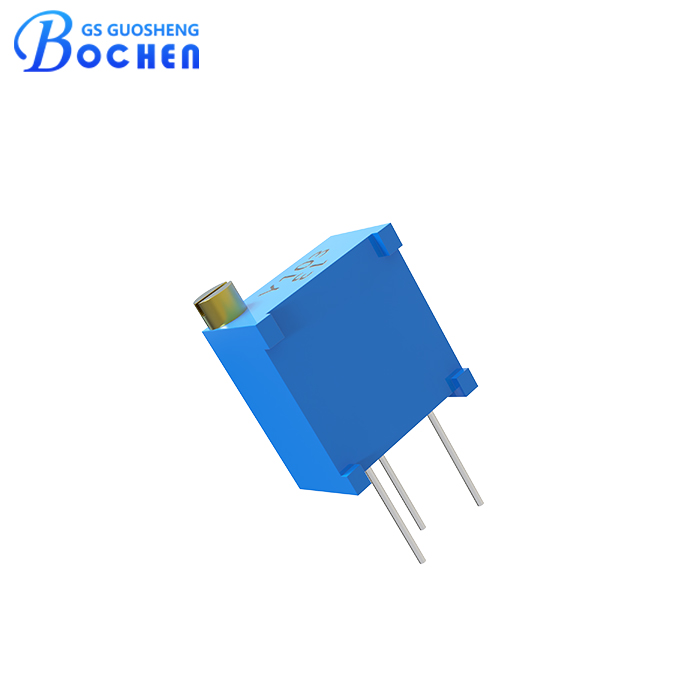

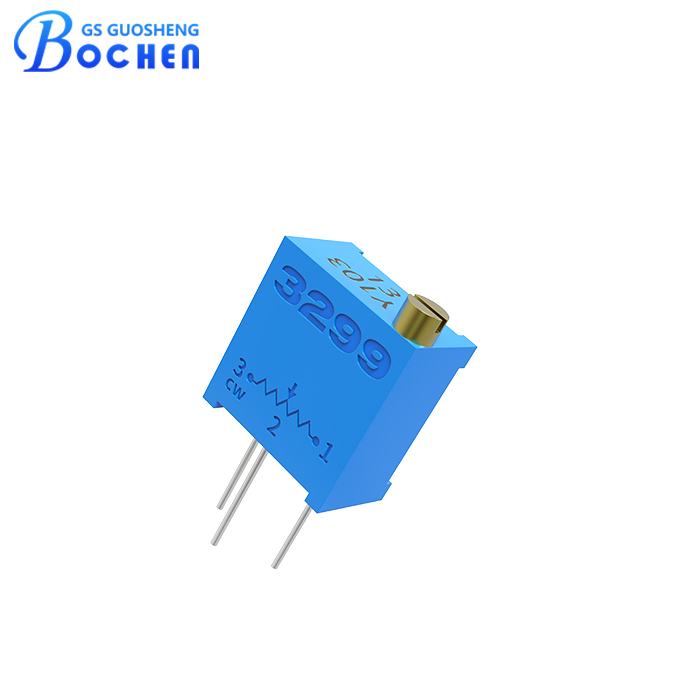

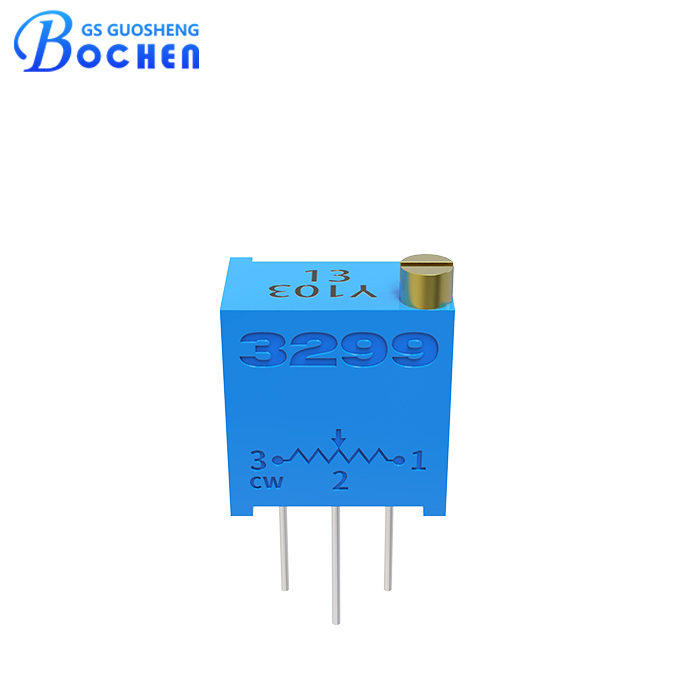

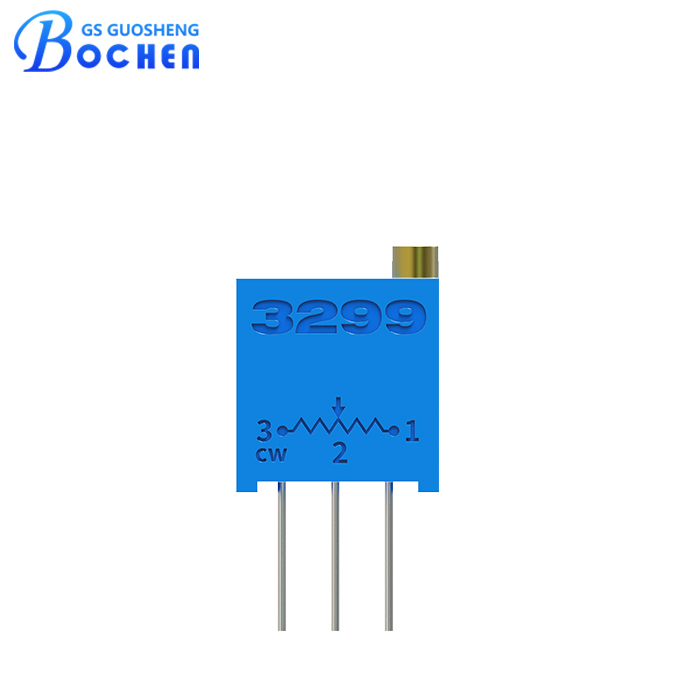

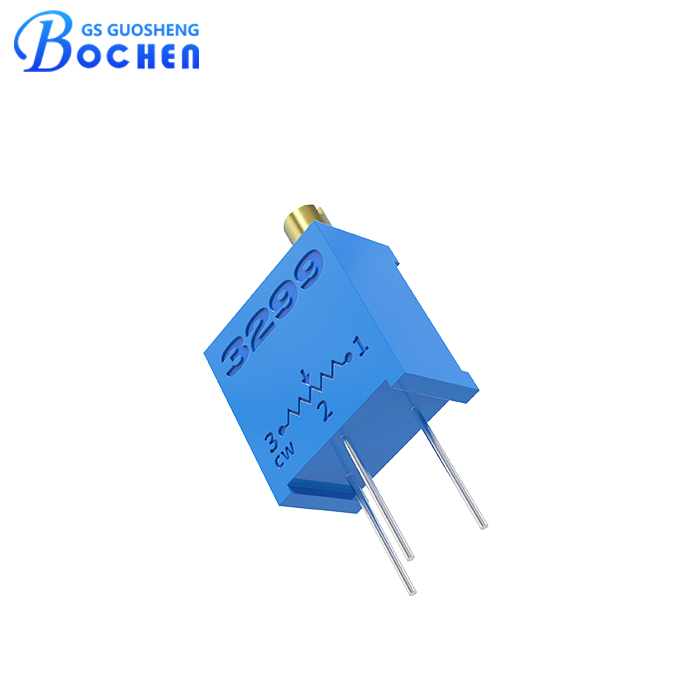

Quick Detail:
● Top adjustment shaft.
● Rated power 0.5W at 70°C.
● Electrical travel 25±2 turns.
● Contact resistance variation ≤3%R or 3Ω.
● Variable resistor,resistance range 10Ω to 5MΩ.
● 3/8″ Square / Multiturn / Cermet / Industrial / Sealed.
Description:
The 3299Y cermet trimmer potentiometer is a multi-turn preset cermet element variable resistor known for its precision and versatility in electronic applications. Featuring top adjustment, this component allows for convenient fine-tuning of resistance values within a broad range from 10Ω to 5MΩ. With an effective electrical travel of 25±2 turns, it offers exceptional control and accuracy in circuit calibration.
Compliant with RoHS standards, this trimmer potentiometer meets environmental requirements while ensuring reliable performance. Its compact size makes it ideal for space-constrained applications, while its high precision and stable operation make it a trusted choice for various electronic systems.
Specification:
| Electrical Characteristics | Range Of Nominal Resistance | 10Ω-5MΩ |
| Resistance Tolerance | ±10% | |
| Terminal Resistance | ≤±1% R or 3Ω | |
| Contact Resistance Variation (CRV) | ≤3%R or 3Ω | |
| Insulation Resistance | 500 Vdc. R1≥1GΩ | |
| Withstand Voltage | 101.3KPa,500 Vac；8.5KPa,250 Vac | |
| Dielectric Strength Sea Level | 500 Vac(1 Min.) | |
| Electrical travel | 25(±2)Turns | |
| Environment Characteristics | Weld Heat Resistance | Wave soldering: Temp: 260℃±5℃, T: 3±1 Secs. Soldering iron welding: Temp: 320℃±5℃, T: ≤2 Secs. |
| Rated Power(300 volts max.) | 70℃,0.5W；125℃,0W | |
| Temperature Range | -55°C ~ + 125°C | |
| Temperature Coefficient | ±250,±100 ppm /°C | |
| Temperature Variation | ΔR≤±2%R, Δ(Uab/Uac)≤±1% | |
| Collision | 10-500Hz,0.75mm,6h ΔR≤±1%R, Δ(Uab/Uac)≤±2% |
|
| Vibration | 100G, ΔR≤±1%R,Δ(Uab/Uac)≤±2% | |
| Electrical Endurance At 70°C | 1000 hours @ 70℃ Rated Power; ΔR≤±3%R | |
| Rotational Life | 200 Cycles,ΔR≤±3%R | |
| Physical Characteristics | Total Mechanical Travel | 30±2 Turns |
| Starting Torque | ≤25 mN.m | |
| Clutch Torque | ≤35 mN.m |

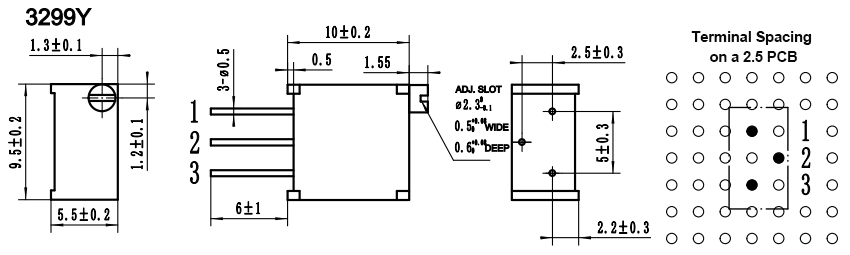

Dimension:
Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.
Packaging:
Packaging specification:50 pieces per tube.
