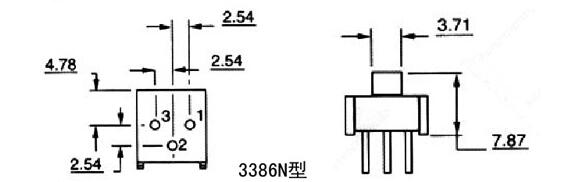

3386N
| Cermet Trimmer 3386N | ||
| Electrical Characteristics | Standard Resistance Range | 10Ω~5MΩ |
| Resistance Tolerance | ±10% ±5%(customization) | |
| Terminal Resistance | ≤1%R or 2Ω | |
| Insulation Resistance | R1≥ 1GΩ | |
| Rated Power | 0.5W ( 250V max) | |
| Withstand Voltage | 101.3kPa 600V 8.5kPa 350V | |
| Contact Resistance Variation (CRV) | ≤3%R or 3Ω | |
| Effective Electrical Travel | 260° | |
| Environment Characteristics | Temperature Range | -55°C~+125°C |
| Temperature Coefficient | ±250, ±100ppm/°C | |
| Collision (390m/S^2, 4000 times) | ΔR≤±3%R | |
| Vibration (10-500HZ, 0.75mm or 98m/S^2 6h) | ΔR≤±1%R, ΔUab/Uac≤±2%R | |
| Temperature Variation | ΔR≤±2%R,ΔUab/Uac≤±5%R | |
| Climate Category | ΔR≤± 3%R, R1≥100MΩ | |
| Electrical Endurance (70°C,0.5W,1000h) | ΔR≤± 3%R | |
| Mechanical Endurance (200 cycles) | ΔR≤± 3%R | |
| Steady Damp-Heat | ΔR≤± 3%R, R1≥100MΩ | |
| Physical Characteristics | Total Mechanical Travel | 280° |
| Starting Torque | ≤20mN.m | |
| Clutch Torque | ≤50mN.m | |
