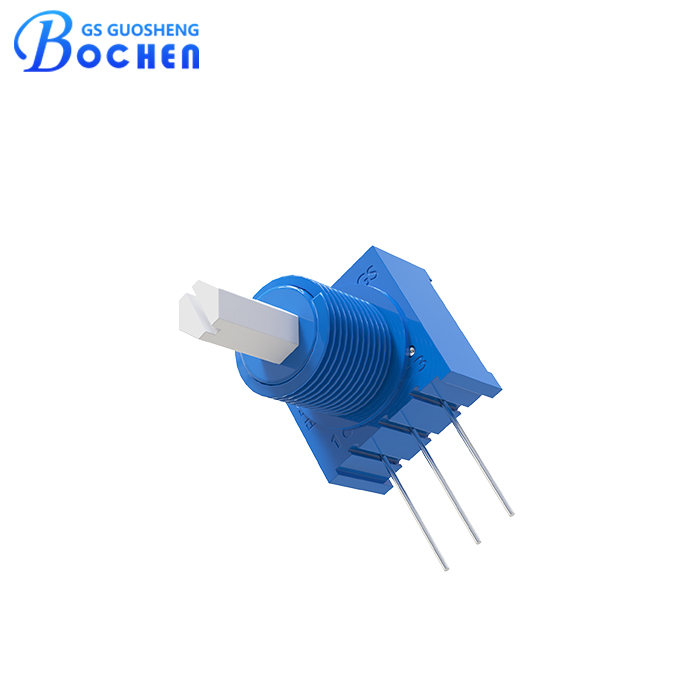

3386P-3 0.5W 10k ohms Precision Single Turn Cermet Trimmer Potentiometer
Quick Detail:
• 3/8˝ square / single turn / cermet element / fully sealed.
• Available with extended shaft.
• Available with a knob for finger adjust.
• Top and side adjustment.
• Through hole mounting.
• Wide ohms range from 10Ω to 5MΩ,tolerance 10%.
• Electrical travel 220°.total mechanical travel 250°.
Description:
The 3386P trimmer potentiometer is an electronic component known for its adjustable resistance capabilities. Here is a brief introduction to its key features:
• Adjustable resistance: The 3386P trimmer potentiometer allows users to precisely adjust resistance levels according to specific circuit requirements, providing control over voltage, current, and signal strength.
• High precision and reliability: This potentiometer offers excellent precision and reliability in resistance adjustment, ensuring consistent and accurate performance.
• Durable construction: The 3386P trimmer potentiometer is built with high-quality materials and features a robust design, making it resistant to wear, temperature variations, and environmental factors.
• Easy installation and compatibility: It features standard pin spacing and is designed for easy installation and compatibility with various electronic systems and devices.
• Versatile applications: The 3386P trimmer potentiometer is commonly used in audio equipment, consumer electronics, industrial controls, and other applications that require precise resistance control.
In summary, the 3386P trimmer potentiometer is a high-precision, reliable, and versatile component that allows for accurate resistance adjustments in electronic circuits. Its durability, compatibility, and wide range of applications make it a preferred choice for engineers and hobbyists in various industries.
Specification:
| Electrical Characteristics | Nominal Resistance Range | 10Ω-5MΩ |
| Resistance Tolerance | ±10% ；±20% | |
| Terminal Resistance | ≤±1% R or 3Ω | |
| Contact Resistance Variation (CRV) | ≤3%R or 3Ω | |
| Insulation Resistance | 500 Vdc. 100 megohms min. | |
| Withstand Voltage | 101.3KPa, 500 Vac；8.5KPa, 250 Vac | |
| Dielectric Strength Sea Level | 500 Vac(1min.) | |
| Effective Travel | 220° | |
| Environment Characteristics | Weld Heat Resistance | 250℃, 10 Sec. |
| Rated Power | 70℃, 0.5W；125℃, 0W | |
| Temperature Range | -55°C ~ + 125°C | |
| Temperature Coefficient | ±250, ±100 ppm /°C | |
| Temperature Variation | ΔR≤±3%R, Δ(Uab/Uac)≤±1% | |
| Collision | 20G, ΔR≤±1%R, Δ(Uab/Uac)≤±1% | |
| Vibration | 100G, ΔR≤±1%R, Δ(Uab/Uac)≤±2% | |
| Electrical Endurance At 70°C | 1000 hours @ 70℃ Rated Power; ΔR≤±3%R | |
| Mechanical Endurance | 200 cycles, ΔR≤±3%R | |
| Physical Characteristics | Total Mechanical Travel | 250° |
| Starting Torque | ≤25 mN.m | |
| Clutch Torque | ≤35 mN.m |
Dimension:
Dimensions in mm,tolerances ±0.30 mm unless otherwise specified.
Packaging:
Packaging specification:50 pieces per tube.
Application:
• Calibration of Electronic Devices.
• Industrial Control.
• Medical Devices.
• Communication Equipment.
• Consumer Electronics.
• Aerospace.
• Automotive Electronics.
