Description

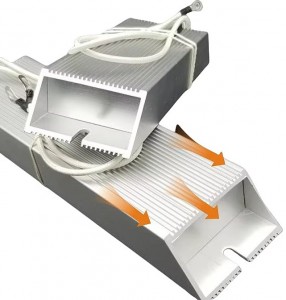

The RX18 Aluminum Housed Wirewound Braking Resistor is a robust and versatile component designed for high-power applications where reliability and precision are critical. Encased in a durable aluminum housing, this resistor offers excellent heat dissipation properties, ensuring stable performance even under demanding conditions.

Featuring a wirewound construction, the RX18 resistor provides superior accuracy and low inductance, making it suitable for a wide range of industrial and electronic applications. It is capable of handling high current loads while maintaining tight tolerance levels, thus ensuring consistent operation in various circuit configurations. Ideal for use in power supplies, motor control systems, braking systems, and other power electronics applications.

With its high power rating and stable characteristics, the RX18 Aluminum Housed Power Wirewound Resistor meets the stringent requirements of modern electronic designs, providing effective solutions for controlling current and managing voltage in diverse applications.

Feature

• Excellent heat transfer and small dimensions.
• Good electrical stability, reliability and mechanically very rigid.
• Wide range of resistance values available.
• Custom terminations, mounting arrangements possible.
• Non Inductive version available.

Specification

Dimension

Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.

Packaging

Packaging specification: 1. 38*30*15CM/6 Pieces/Carton/16KG(1000W);

                                        2. 62*36.8*14CM/5 Pieces/Carton/22KG(3000W)

Application

The RX18 Aluminum Housed Power Wirewound Resistor finds application in various specific equipment and facilities, including:

1. Power Supplies: Ensures stable current and voltage in power supply units, enhancing system reliability.
2. Motor Control Systems: Limits current and protects circuit components in motor drive and control circuits.
3. Braking Systems: Used in braking resistors for energy recovery and control of braking circuits.
4. Generators: Stabilizes current and voltage outputs in generator circuits.
5. Industrial Automation Equipment: Regulates resistance and power distribution in various industrial automation control systems.
6. Electronic Devices: Manages and controls current in diverse high-power electronic devices and circuit boards.

In summary, the RX18 Aluminum Housed Power Wirewound Resistor plays a crucial role in electronic and electrical equipment requiring high power, stability, and reliability. It is extensively utilized in industrial, electronic, communication, and automotive sectors.
