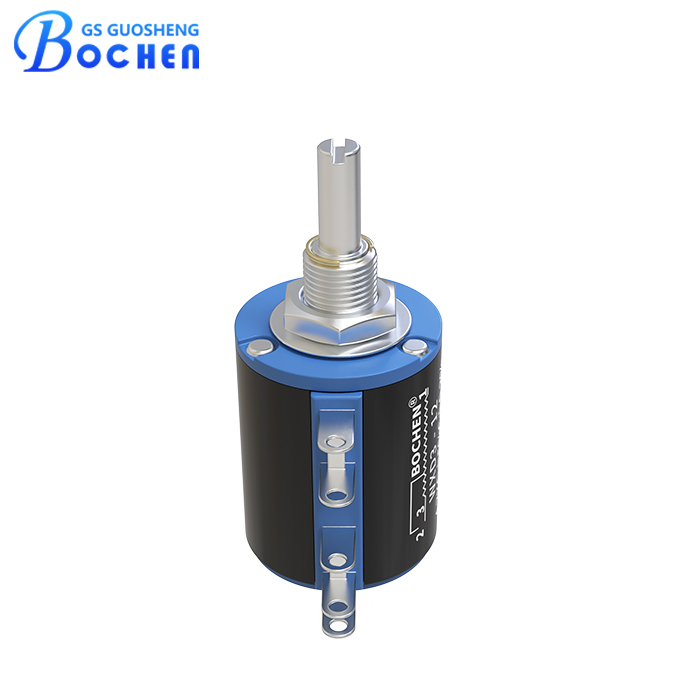

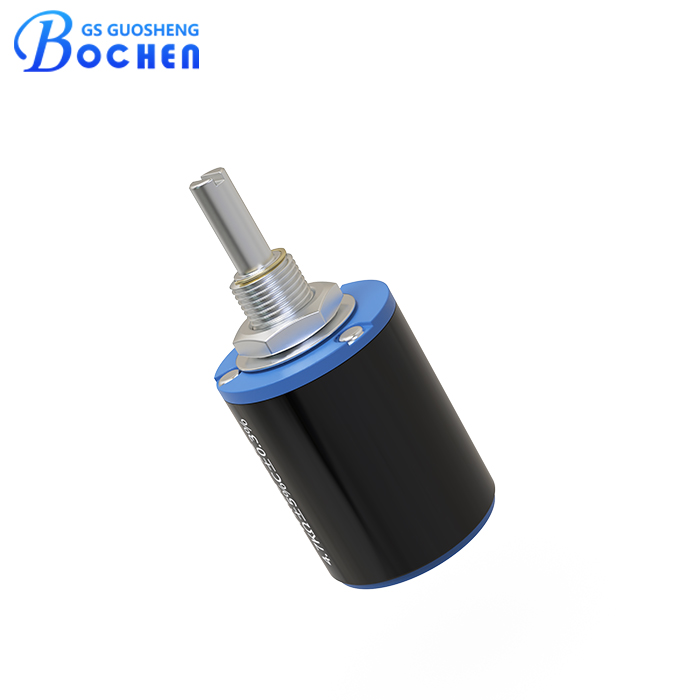

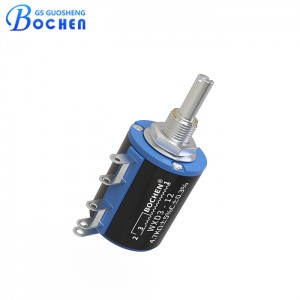

WXD3-12 1W 10k ohm five turn precision multiturn wirewound potentiometer
Description:
The WXD3-12 wirewound potentiometer is a high-quality component known for its precise resistance control. With its compact design and smooth operation, it is suitable for a wide range of applications. It can handle high power levels and offers a wide range of resistance values. The WXD3-12 wirewound potentiometer is durable and reliable, making it a favored choice in audio equipment, industrial controls, power supplies, and other electronic systems.
Specification:
| Electrical Characteristics | Nominal Resistance Range | 100Ω~47KΩ |
| Resistance Tolerance | ±5% | |
| Independent Linearity | ±0.25% | |
| Effective Travel | ≥1800°-10° | |
| Terminal Resistance | ≤0.2%R or 5Ω | |
| Noise | ≤3%R or 3Ω | |
| Insulation Resistance | R≥1GΩ | |
| Withstand Voltage | 101.3kPa 710V, 8.5kPa 470V | |
| Environment Characteristics | Rated Power | 1W@+70℃, 0W@+125℃ |
| Temperature Range | -55℃~+125℃ | |
| Temperature Coefficient | ±100ppm/℃ | |
| Temperature Variation | ΔR≤2%R, Δ(Uab/Uac)≤±1% | |
| Vibration | 390m/s2, 4000cycles,R≤±1%R | |
| Collision | 10-500Hz, 0.75mm,or 98m/s2, 6hΔR≤土1%R, Δ(Uab/Uac)≤±2% | |
| Climate Category | ΔR≤±3%R, R1≥100MΩ | |
| Electrical Endurance At 70°C | 1W, 1000h, ΔR≤±3%R | |
| Mechanical Endurance | 10000 cycles, ΔR≤±3%R | |
| Steady Damp Heat | ΔR≤±3%R, R1≥100MΩ | |
| Physical Characteristics | Total Mechanical Travel | 1800°±10° |
| Starting Torque | ≤36mN·m | |
| Clutch Torque | ≤300mN·m |
Dimension:
Packaging:
Packaging specification: 20 pieces per box.
Applications:
The WXD3 wirewound precision potentiometer is widely used in various applications due to its high accuracy and reliability. Some of the key application areas include:
• Industrial Automation: Used in control systems for precise adjustment of machinery and equipment.
• Aerospace and Defense: Employed in navigation systems, control panels, and other critical components requiring high precision.
• Medical Equipment: Utilized in devices that need accurate control of parameters, such as in diagnostic machines and patient monitoring systems.
• Audio Equipment: Applied in high-fidelity audio systems for volume and tone control.
• Instrumentation: Used in scientific instruments for precise measurement and calibration.
• Telecommunications: Implemented in communication devices for tuning and signal adjustment.
• Automotive: Found in various automotive systems for controlling functions like throttle position and suspension settings.
These potentiometers are chosen for their durability, stability, and ability to maintain accuracy over time, making them suitable for critical and high-performance applications.
